Architectural Profile Highlight
EIFS Flat Foam Bands

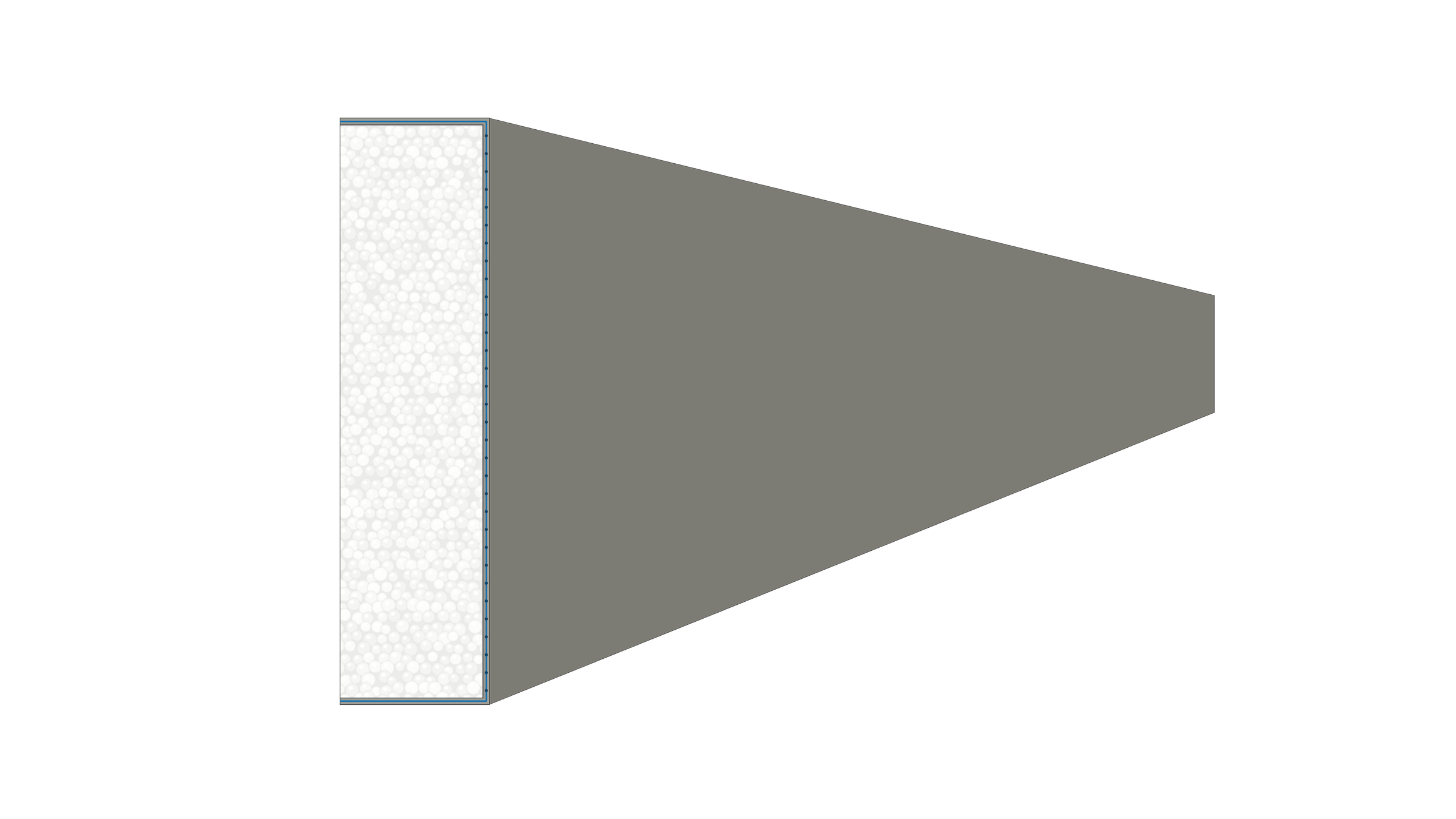

Flat bands are one of the simplest ways to give a building’s exterior character. A belly band between floors, trim around windows and doors, or a clean horizontal line across a facade can turn a plain EIFS or Stucco wall into a finished, architectural look. FoamWorks hot-wire cuts every flat foam trim band from EPS or GPS foam, supplied as raw foam or meshed and base-coated, ready for your finish.
We were founded by an EIFS installer with more than 15 years in the field, so we know how a band should look on the wall and how it should go up: straight, consistent, and true to the design.
Why Contractors use FoamWorks Flat Bands
Add character to any exterior
Flat bands break up large wall areas, frame windows and doors, and add the shadow lines that give a building its look.
Clean Straight Lines
Hot-wire cutting gives consistent sizes and crisp edges, so long runs of band read straight from end to end.
Raw or ready to finish
Order raw foam, or meshed and base-coated on every face except the flat back in our climate-controlled shop
Popular sizes on hand
Our most requested flat bands are generally kept in stock, so that they can be ready to start your project when you are
Flat Band Dimensions
Available Sizes

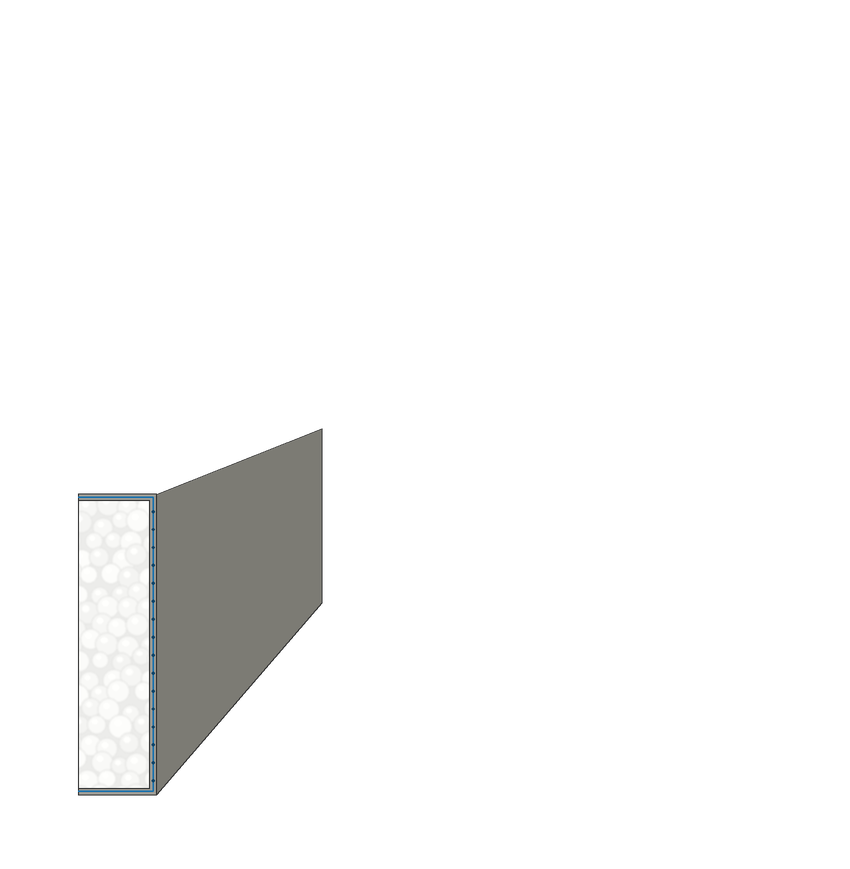

1”x4” Band

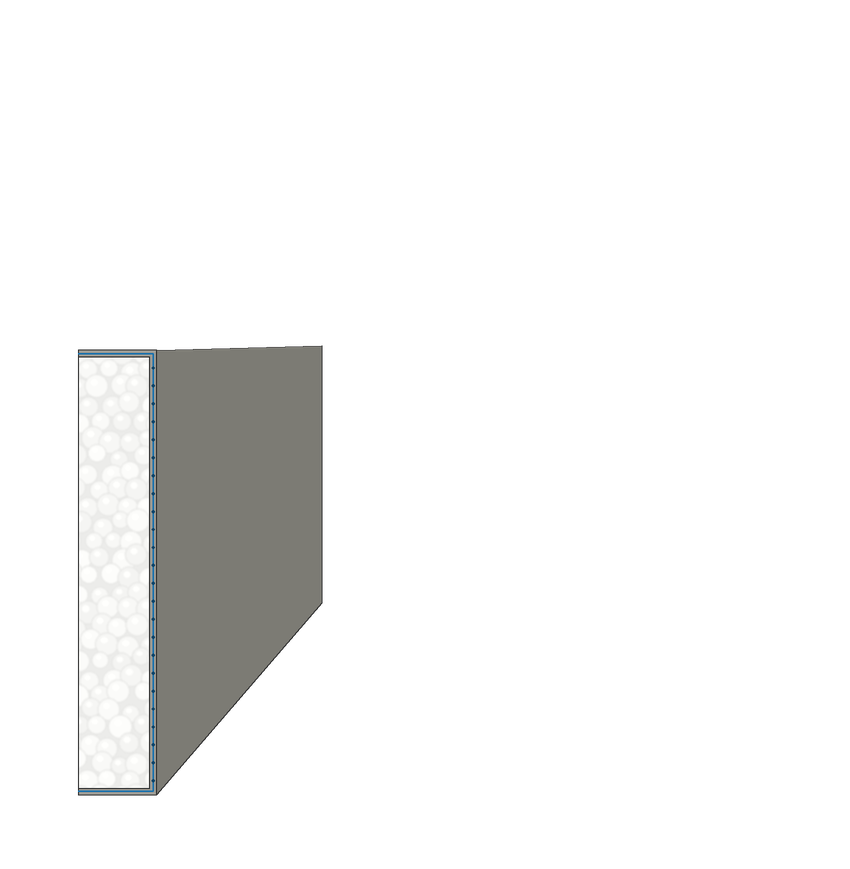

1”x6” Band

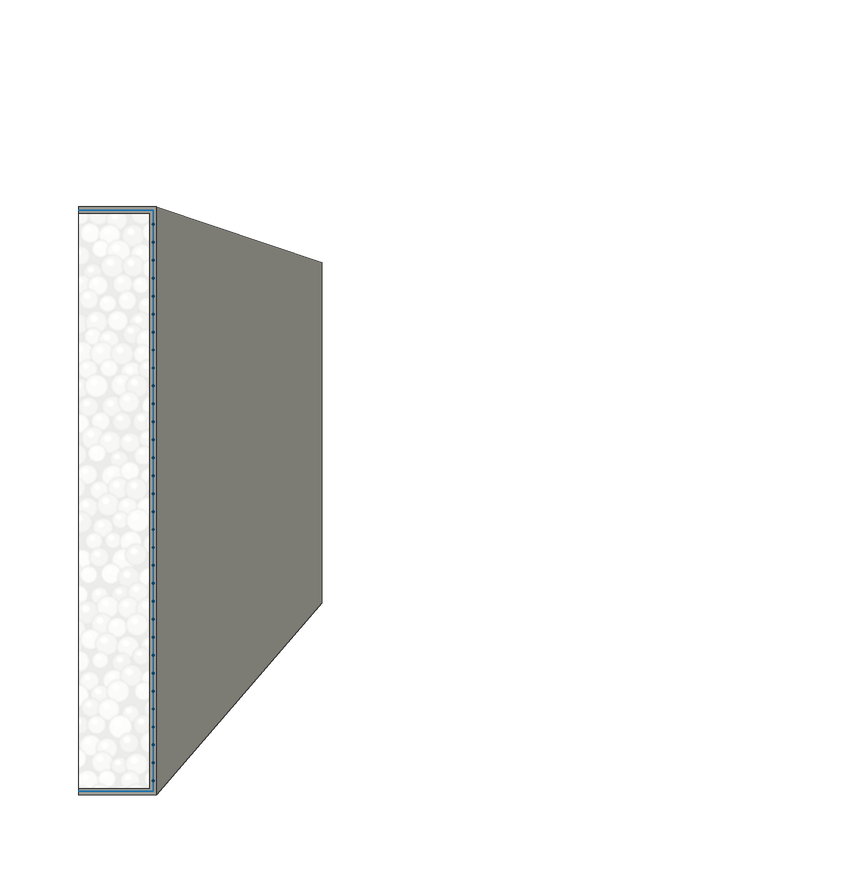

1”x8” Band

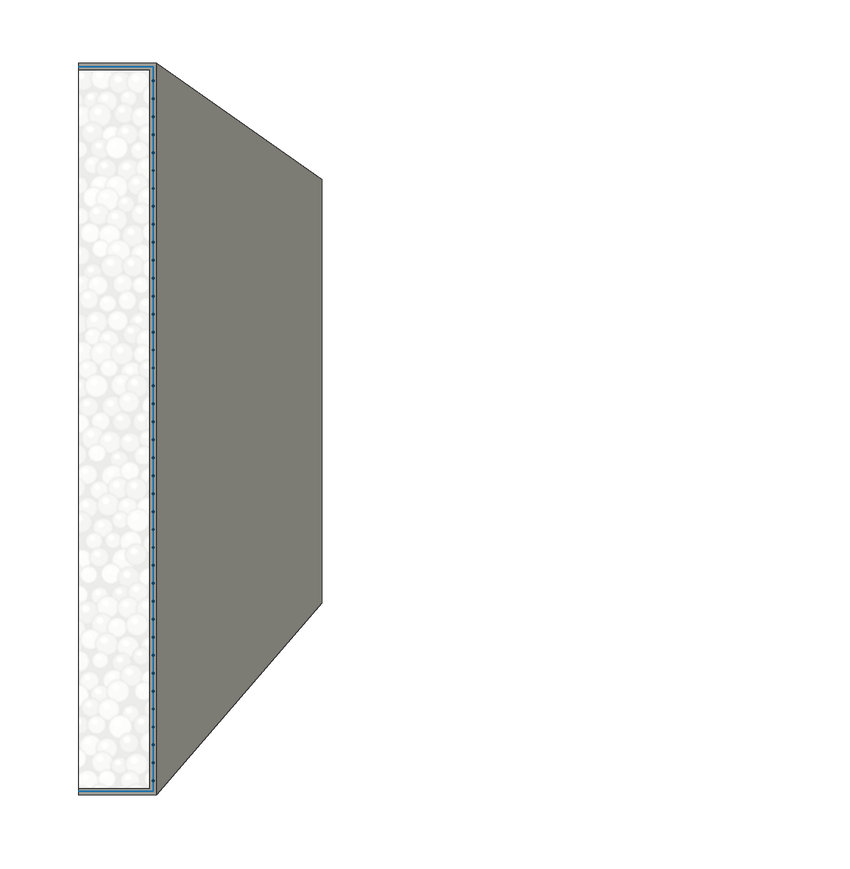

1”x10” Band

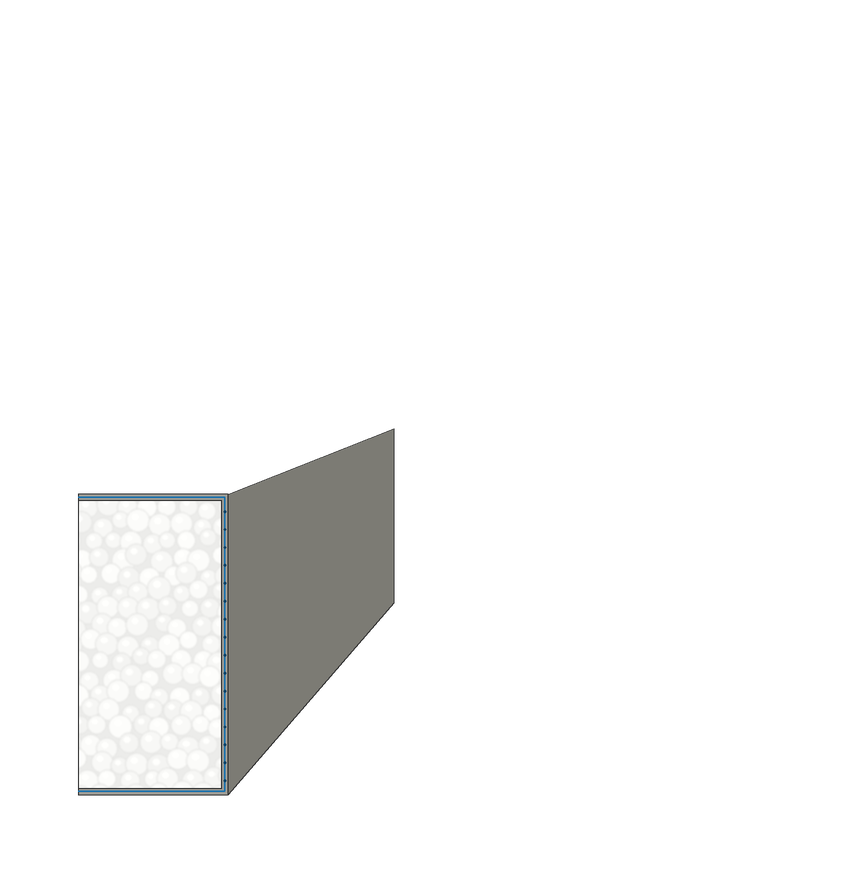

2”x4” Band

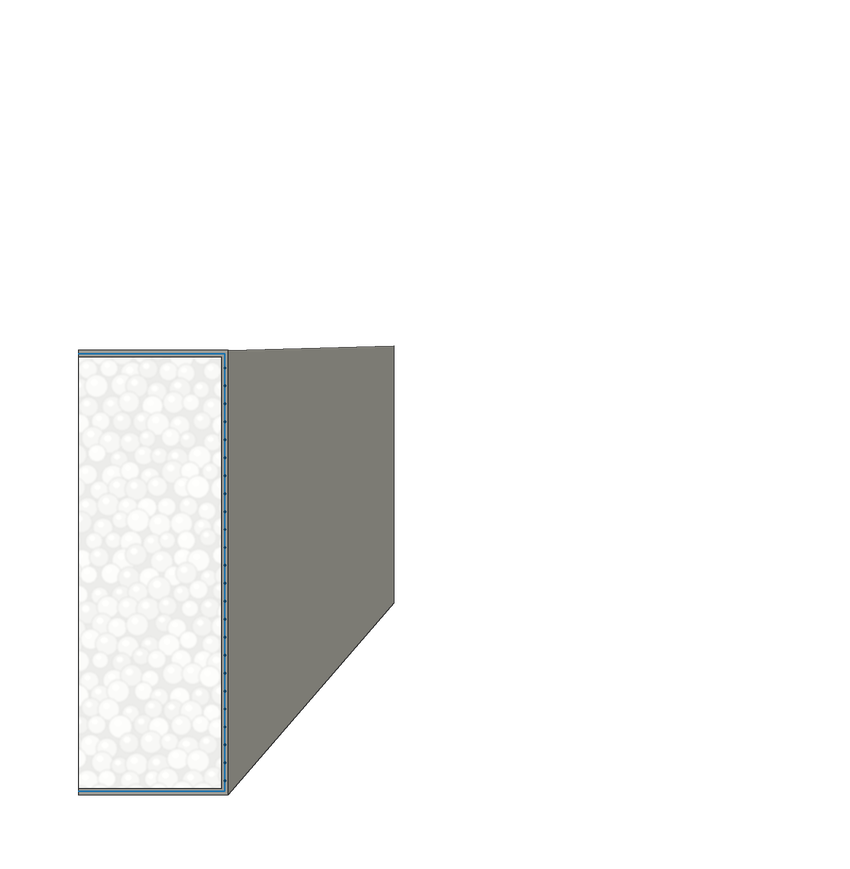

2”x6” Band

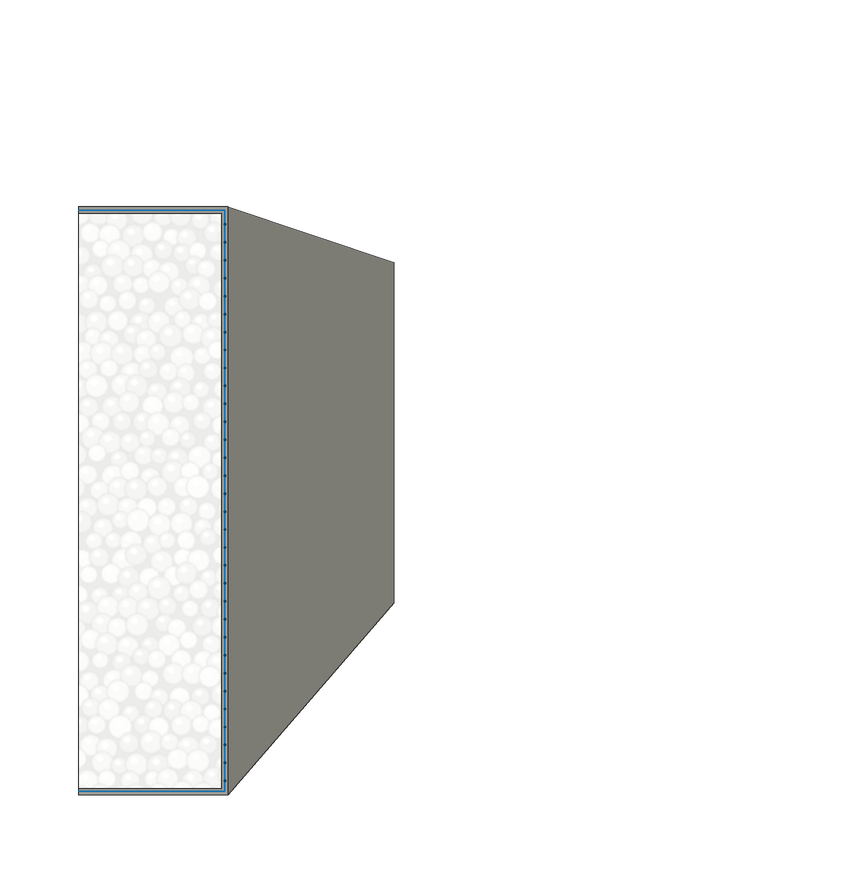

2”x8” Band

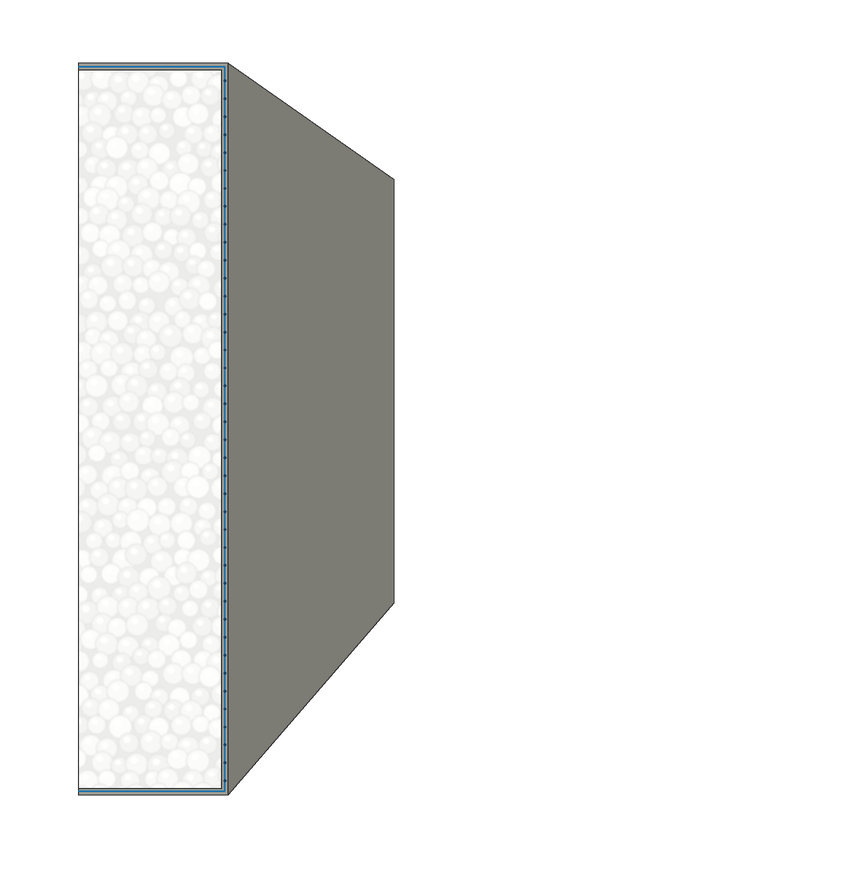

2”x10” Band

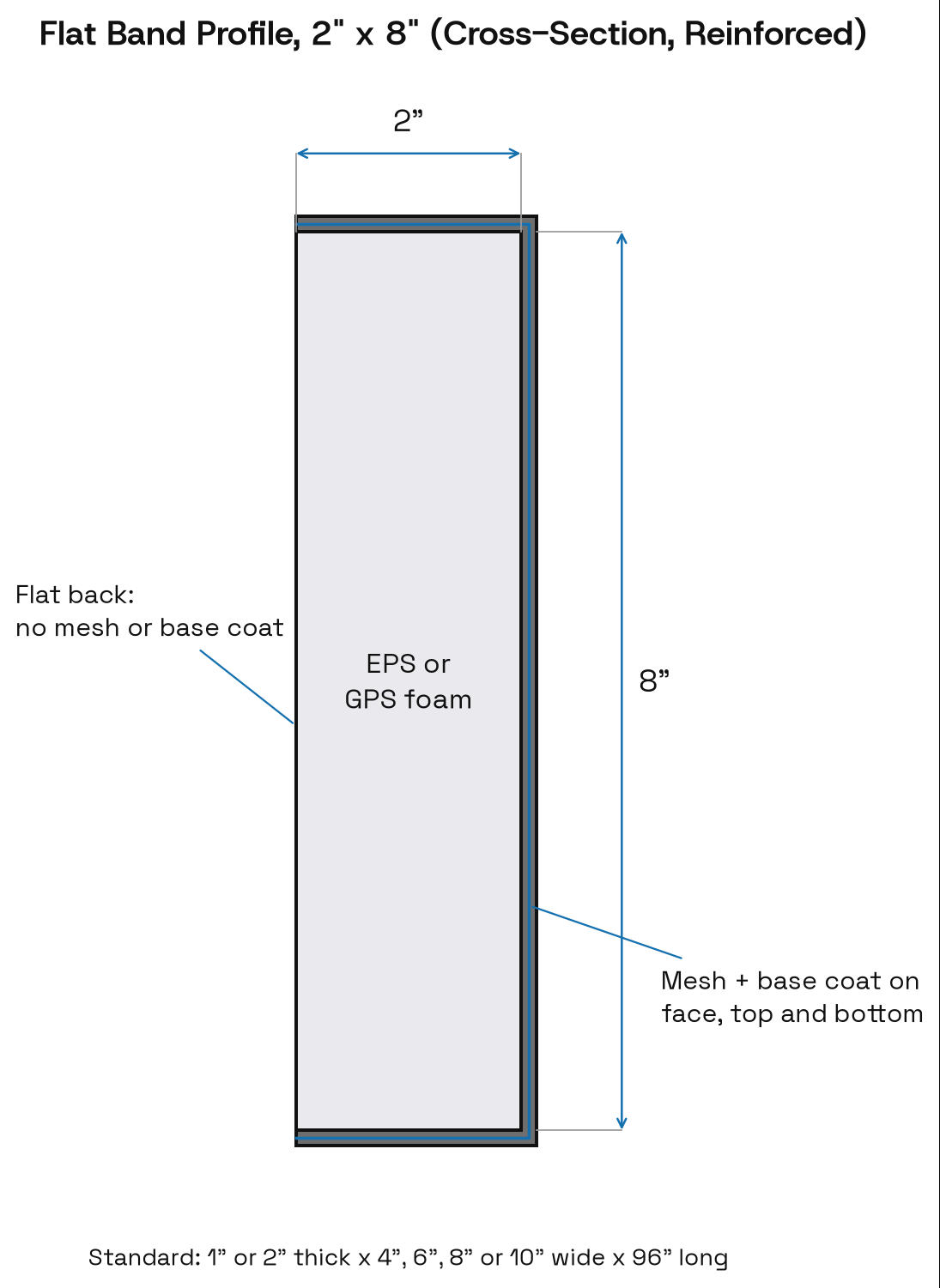

Flat Band Sizes & Options
Sizes
Standard flat bands come 1” or 2” thick, in 4”, 6”, 8”, 10” widths, 96” long
Material
1 lb density EPS is our standard that we keep in stock, while other densities of EPS & GPS are available on request
Mesh Weight
We carry various weights of Blue mesh, Orange mesh, and our standard for Bands - White mesh
Profile
A flat rectangle with square edges. Sloped tops and other edge details are available as custom cuts
Reinforcement
Order raw foam, or with fiberglass mesh and a cement base-coat applied to every face except the flat back
Custom Profiles
Need a different size, or edge detail? Send us a drawing, sketch or sample and we’ll quote it!
EPS or GPS?
EPS is the industry standard and 1 lb density is the billet we keep in stock and cut shapes from. For customers who need more insulating power, we offer higher densities of EPS or even GPS - containing graphite and even more R-Value at lower densities of foam. Both are compatible with EIFS systems.
Full foam property data can be found at the link below:
Need Flat Bands for your Job?
Send us the following information for a quote on flat bands: Width & Height, Linear Footage or 8’ Piece Counts, Material & Density (1 lb EPS is assumed unless specified), Mesh Requirements (White Mesh assumed unless specified)
Average quote turnaround: 24 hours. We ship to supplier addresses and job sites across the continental US in addition to local pickup
Or reach out here (814) 201-6641 | sales@foamworksusa.com
Flat Band FAQs
-
Both. Order raw foam, or meshed and base-coated. Reinforced bands get mesh and base coat on every face except the flat back
-
We keep the more popular sizes in stock with blue mesh and white mesh applied:
1” x 4”1” x 6”
1” x 8”
2” x 8”
-
Most customers use EPS to match the rest of the wall. GPS is fully compatible with EIFS and insulates better, but costs more, so we see it used less often. We can cut whichever one you need!
-
Average quote turnaround for flat bands is 24 hours. Custom sizes or edge details may take longer at 24-48 hours.
-
Anywhere in the continental US, to supplier addresses or job sites. Local pickup is also available.

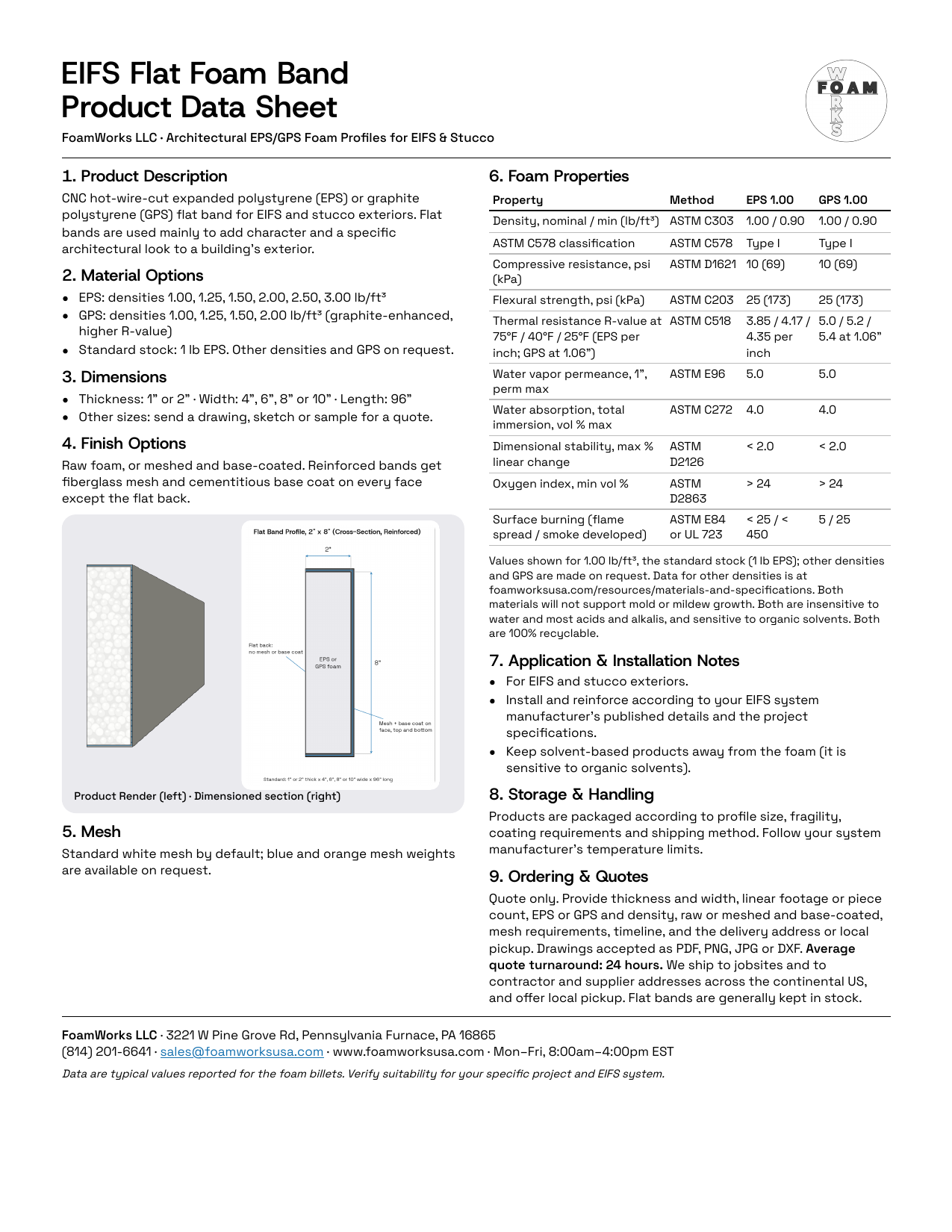

Flat Band Spec Sheet
One-page Flat Band spec / submittal sheet.
